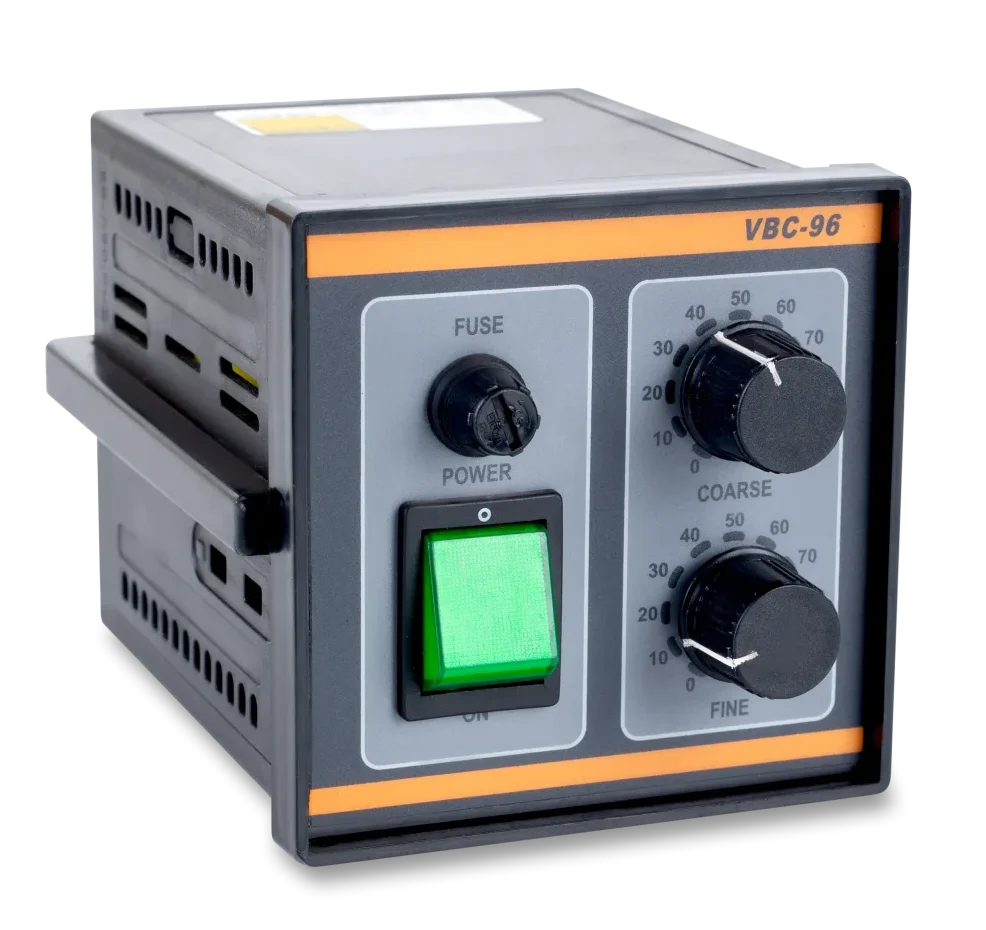

Visual feedback for operator-controlled applications.
Technical Specifications
Control & Protection Features
Operating Conditions
Technical Specifications
- Input Supply: 230V AC, 50 Hz
- Output Voltage: 0-200V AC adjustable
- Rated Current: 5A
- Max Power: 1000 VA
- Output Frequency: 50 Hz (fixed)
- Control Method: Phase angle control
- Material: ABS plastic housing with front bezel
- Dimensions: 96mm × 96mm panel cutout
- Mounting: Front panel mounting (standard 96×96 cutout)
- Clean, professional appearance for operator stations
Control & Protection Features
- Smooth, stable output control with visual feedback
- Adjustable soft start (0-5 seconds)
- Turn-on delay: <1 second
- Remote on/off via potential-free contact
- Overcurrent protection with automatic trip
- User-friendly front panel controls
Operating Conditions
- Temperature: 0°C to +50°C
- Humidity: 10% RH to 90% RH
Common Key Features Across Range
Performance & Control
Equipment Protection & Reliability
Automation & Connectivity
Flexibility & Configuration
Performance & Control
- Optimized for Inductive Loads Specifically engineered for electromagnetic vibratory coils, delivering stable power without the hunting or oscillation common with generic controllers.
- Smooth, Linear Control Advanced phase-angle control provides precise, stable output across the entire adjustment range, no dead zones or sudden jumps.
Equipment Protection & Reliability
- Extended Equipment Life Soft start functionality reduces mechanical stress on bowls, springs, and coils, minimizing wear and extending maintenance intervals.
- Comprehensive Protection Overcurrent safeguards both the controller and your vibratory equipment.
Automation & Connectivity
- Remote Control Options PLC – Compatible isolated Remote Start / Stop options.
Flexibility & Configuration
- Flexible Power Options Multiple current ratings (5A / 10A / 15A) and configurations match your feeder size and application requirements.
Applications Across Industries
Pharmaceutical & Healthcare
Food & Beverage
Packaging Industry
Manufacturing & Assembly
Process Industries
Material Handling
Pharmaceutical & Healthcare
- Capsule and Tablet Feeding: Pharmaceutical bowl feeders with precise counting
systems - Blister Pack Feeding: Controlled feeding for packaging automation
- Medical Device Components: Clean, consistent feeding for assembly lines
Food & Beverage
- Ingredient Dosing: Powder, granule, and solid ingredient feeding
- Pouch Filling Systems: Consistent material delivery for weighing and filling
- Snack Food Processing: High-speed feeding for packaging lines
- Spice Processing: Controlled feeding of powders and granules
Packaging Industry
- Weighing Systems: Stable feeding for multihead weighers
- Form-Fill-Seal Machines: Consistent material delivery
- Counting & Batching: Precision feeding for automated packaging
Manufacturing & Assembly
- Screw & Fastener Feeders: Orientation and delivery for assembly automation
- Component Orientation Bowls: Automotive, electronic, and plastic part feeding
- Small Parts Assembly: Consistent feeding for high-speed assembly lines
Process Industries
- Powder & Granule Feeders: Chemical, detergent, and fertilizer processing
- Material Transfer Systems: Vibratory tables and conveyors for bulk handling
- Compaction Applications: Controlled vibration for material settling and densification
Material Handling
- Vibratory Conveyors: Linear and spiral conveyors for gentle product transport
- Screening & Separation: Vibratory screens for size classification
- Hopper Discharge: Flow aid systems for consistent material discharge
