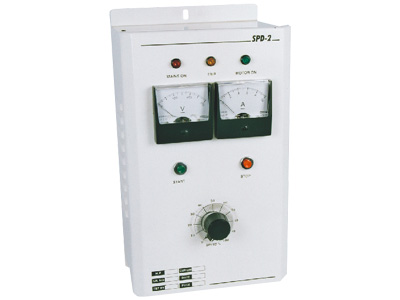

| Housing |
|
Wall mounting type Powder Coated
MS enclosure. |
|
|
| Size |
H=350mm,W=190mm, D=130mm. |
|
|
| Specifications
|
|
• Input |
: 230VAC, +/- 10%, 50Hzs. |
|
• Field
Output |
: 200VDC fixed. |
|
• Armature
Output |
: 0V - 180VDC variable. |
|
|
|
| Protections &
Features |
•
Heavy-duty line suppressers
for Mains Power Fluctuations & noise.
•
Field fail protection
& In-built Soft Start.
•
Motor Overload Protection
by adjustable Current Limit & Current Trip.
•
Adjustable Min &
Max speed.
•
Analog DC Volt meter
& DC Ameter.
•
Mains On/Off switch.
•
Mains On, Trip &
Motor on indicating lamps.
•
Speed set Potentiometer.
•
Start pushbutton.
•
On board easily replaceable
fuses & terminals for connections. |
|
|
