| Housing |
|

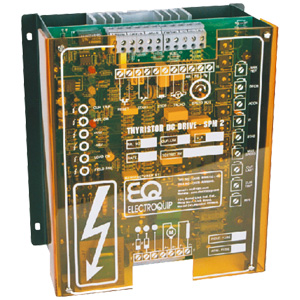

Module : Base plate mounting
with top acrylic cover. (Open execution type). |
|
|
| Size |
H=230mm, W=220mm, D=105mm. |
|
|
| Specifications
|
|
• Input |
: 230VAC or 440VAC - 2 Phase, +/- 10%, 50Hzs. |
|
• Field
Output |
: 200VDC fixed. |
|
• Armature
Output |
: oV-180Vdc OR 0V - 360Vdc variable. |
|
|
|
| Protections &
Features |
•
Continuous Firing
Circuit, which gives smooth and step less output.
•
R-C Snubbers for Thyristor's
protections.
•
Tacho Feedback provision.
•
Motor Overload protection
by Adjustable Current limit & Curent Trip.
•
Field Fail protections.
•
Adjustable Acceleration
& Decceleration time. (3 to 15 secs).
•
Adjustable Max-Min
Speeds.
•
Adjustable IR Compnsation.
•
LED indications for
Field Fail, Power, Motor On & Trip. |
|
|
