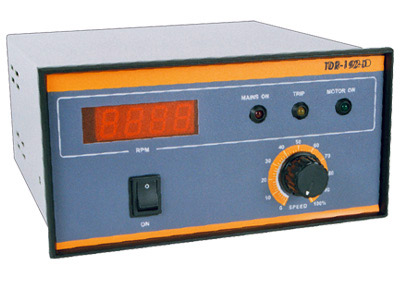

Housing  Front Panel mounting type, Powder coated MS Enclosure.
 Size  H=96mm x W=192mm x D=150mm.
 Cutout  H=92mm x W=186mm. (with +1 / -0mm tolerance)
I/P Supply : 230V AC, +/- 10%, 50 Hzs.
Armature O/P : 0V - 180V DC variable.
Power : Up to 1HP PMDC/Shunt motor.
Display : 31/2 digit. Max display=1999 count.
Note: The display can be viewed with any required value from 000 to Max 1999 count. This reading will be directly proportional to the motor output voltage and not the RPM.
 Protections & Features
Heavy-duty line suppressers for Mains Power Fluctuations & noise.
In-built Soft Start.
Motor Overload Protection by adjustable Current Limit & Current Trip.
Adjustable Min & Max speed at back side.
Front Panel Mains On, Trip, & Motor On indications.
Front Panel On/Off switch & Speed set Potentiometer.
Front Panel Digital display with adjustment at backside.
Easily replaceable fuses & terminals for connections at backside.
'Remote On-Off' (control On-Off) provision for frequent motor On-Off operation.
