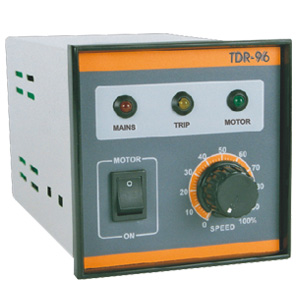

| Housing |
|
Front Panel mounting type, Powder
coated MS Enclosure. |
|
|
| Size |
H=96mm x W=96mm x D=150mm. |
|
|
| Cutout |
92mm x 92mm. (with +1 / -0mm
tolerance) |
|
|
| Specifications
|
|
• I/P Supply |
: 230V AC, +/- 10%, 50 Hzs. |
|
• Armature
O/P |
: 0V - 180V DC variable. |
|
• Power |
: Up to 1/4HP PMDC motor. |
|
|
|
| Protections &
Features |
•
Heavy-duty line suppressers
for Mains Power Fluctuations & noise.
•
In-built Soft Start.
•
Motor Overload Protection
by adjustable Current Limit & Current Trip.
•
Adjustable Min &
Max speed at back side.
•
Front Panel Mains On,
Trip, & Motor On indications.
•
Front Panel On/Off
switch & Speed set Potentiometer.
•
Front Panel Digital
display with adjustment at backside.
•
Easily replaceable
fuses & terminals for connections at backside.
•
'Remote On-Off' (control On-Off) provision for frequent
motor On-Off operation. |
|
